| Material M材質 |
| 鈹銅/brass+SUS420 |

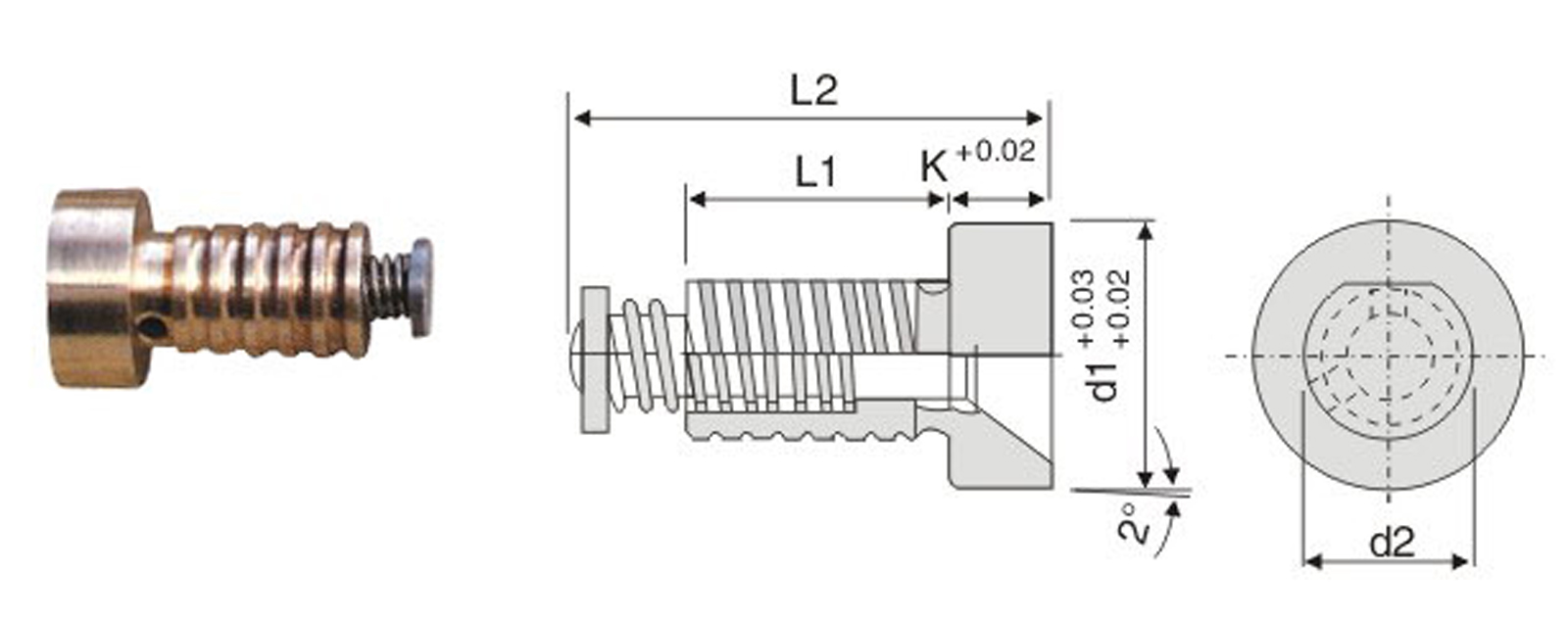

| Type | 尺寸/dimension | |||||
| d2 | d1 | L2 | K | L1 | max.°C | |
| JHN54-01 | 6 | 8 | 16 | 5 | 8 | 250 |
| JHN54-02 | 8 | 13 | 21 | 12 | ||
| JHN54-03 | 10 | 12 | 22 | 6 | 16 | |
| Material M材質 | Hardness 硬度 |
| SUS420 | HRC40°±2° |
工作氣壓 / air pressure:80~100psi

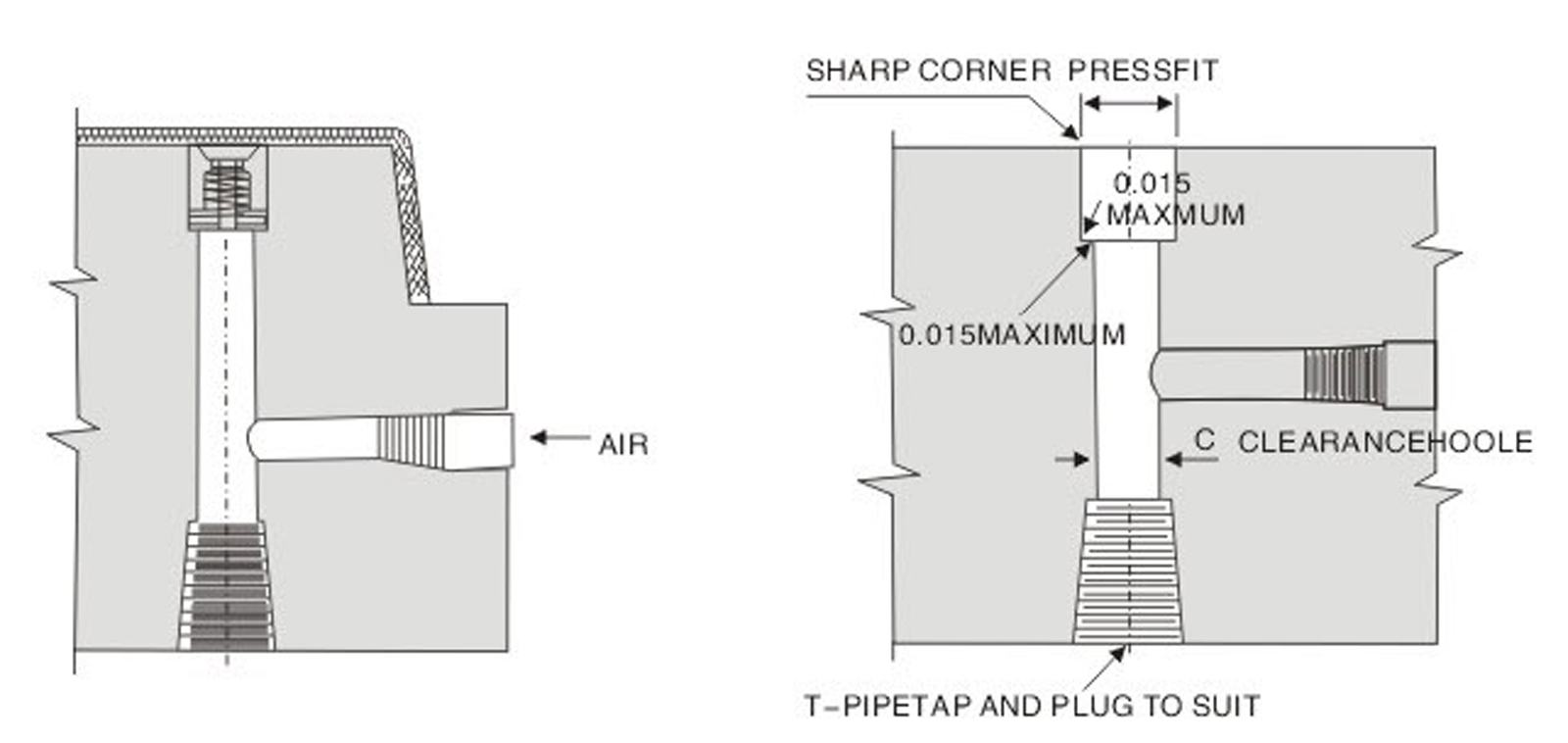

此産品致力于解決在注塑成形期間産生的真空問題。
solve vacuumed problem when injecting molding

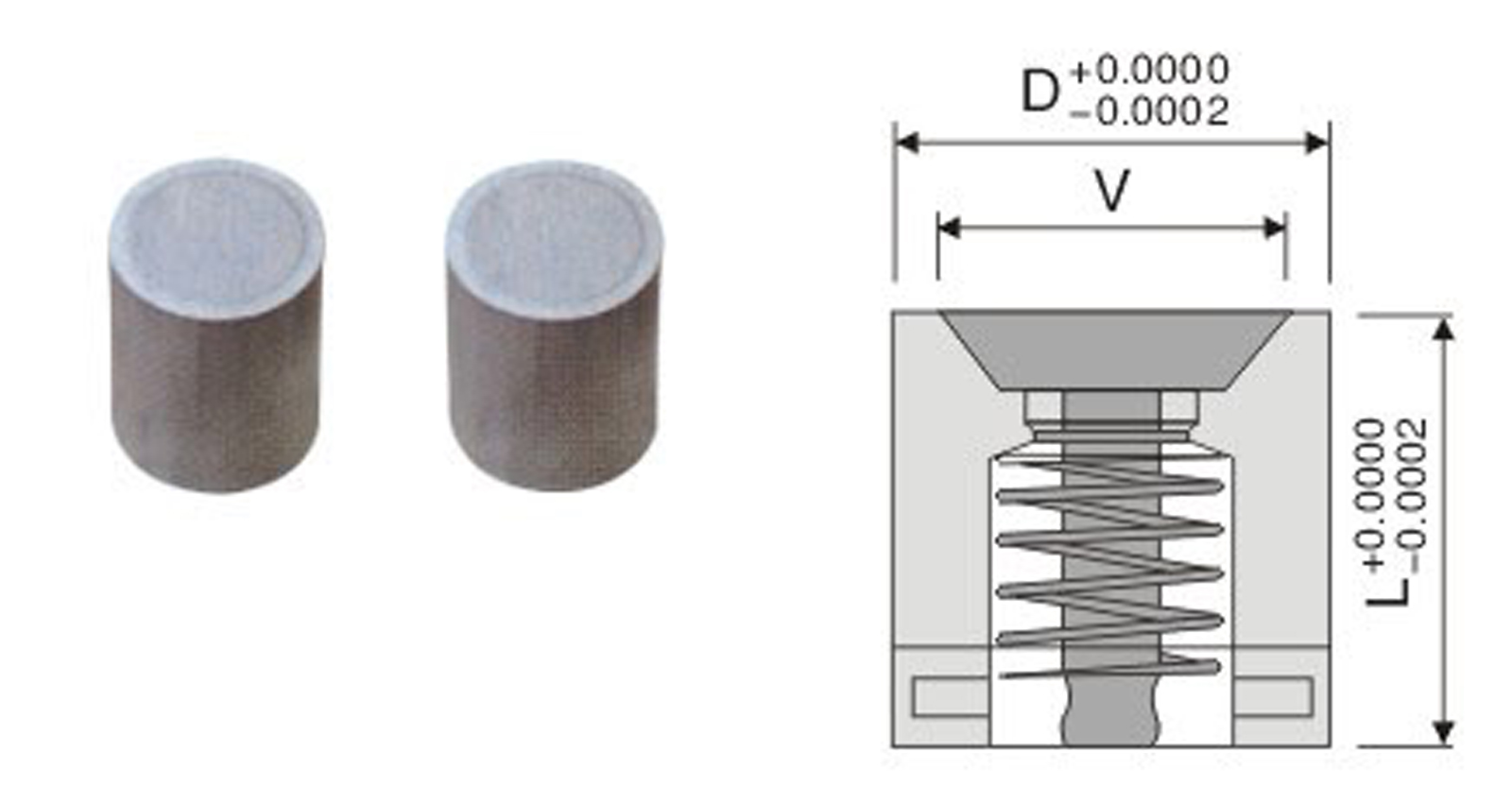

| Type | 尺寸/dimension | |||
| D | V | L | C | |
| JHN55-01 | .3754 | .325 | .377 | 9/32 |
| JHN55-02 | .5005 | .437 | .502 | 3/8 |
| JHN55-03 | .7505 | .656 | .752 | 37/64 |
| JHN55-04 | 1.0006 | .895 | 1.002 | 3/4 |
訂購：219-空氣梢 JHN55
