| 鋁合金 Aluminum si<9% | 鎳基高溫合金 Nicle Based Alloy | 銅合金 CopperAlloy | 復合材料 Composite Material |
 | | | |
| 不銹鋼 Stainless steel | 沉淀硬化不銹鋼 Preciptation hardeningStainless Steel | 淬硬鋼 HarenedSteel HRC>62 | 淬硬鋼 HarenedSteel HRC56-62 |
 | | | |
| 合金鋼 alloy Steel HRC<45 | 灰鑄鐵 Grey Cast Iron | 普通鋼 Commom Steel HRC<25 | 鈦合金 Titanium Alloy |
| | | |
備注：非常適合
比較適合不適合
 | D≤12 | D>12 | |
| 0 -0.020 | 0 -0.030 | ||
 | d=6 | 8≤d≤10 | 12≤d≤16 |
| 0 -0.008 | 0 -0.009 | 0 -0.011 |

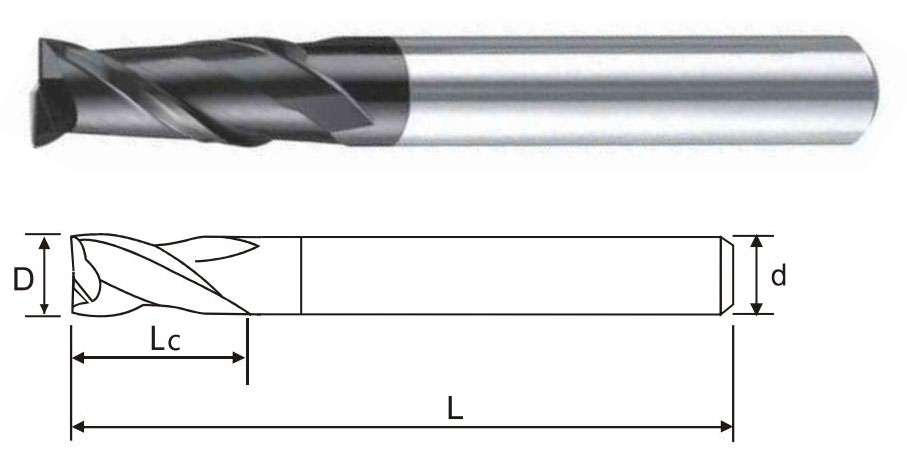

| 商品編號 Product number | 刃徑(D) Blade diameter | 刃長(Lc) Blade length | 柄徑(d) Shank diameter | 全長(L) Overall length | 刃數 Flute |
| MF5002E100450 | 1.0 | 2.5 | 4 | 50 | 2 |
| MF5002E150450 | 1.5 | 4 | 4 | 50 | 2 |
| MF5002E200450 | 2.0 | 5 | 4 | 50 | 2 |
| MF5002E250450 | 2.5 | 6 | 4 | 50 | 4 |
| MF5002E300450 | 3.0 | 8 | 4 | 50 | 4 |
| MF5002E400450 | 4.0 | 10 | 4 | 50 | 4 |
| MF5002E300650 | 3.0 | 8 | 6 | 50 | 4 |
| MF5002E400650 | 4.0 | 10 | 6 | 50 | 4 |
| MF5002E500650 | 5.0 | 13 | 6 | 50 | 4 |
| MF5002E600650 | 6.0 | 15 | 6 | 50 | 4 |
| MF5002E800860 | 8.0 | 20 | 8 | 60 | 4 |
| MF5002E1001075 | 10.0 | 25 | 10 | 75 | 4 |
| MF5002E1201275 | 12.0 | 30 | 12 | 75 | 4 |
| MF5002E1401475 | 14.0 | 32 | 14 | 75 | 4 |
| ME5002E16016100 | 16.0 | 45 | 16 | 100 | 4 |
| MF5002E20020100 | 20.0 | 45 | 20 | 100 | 4 |

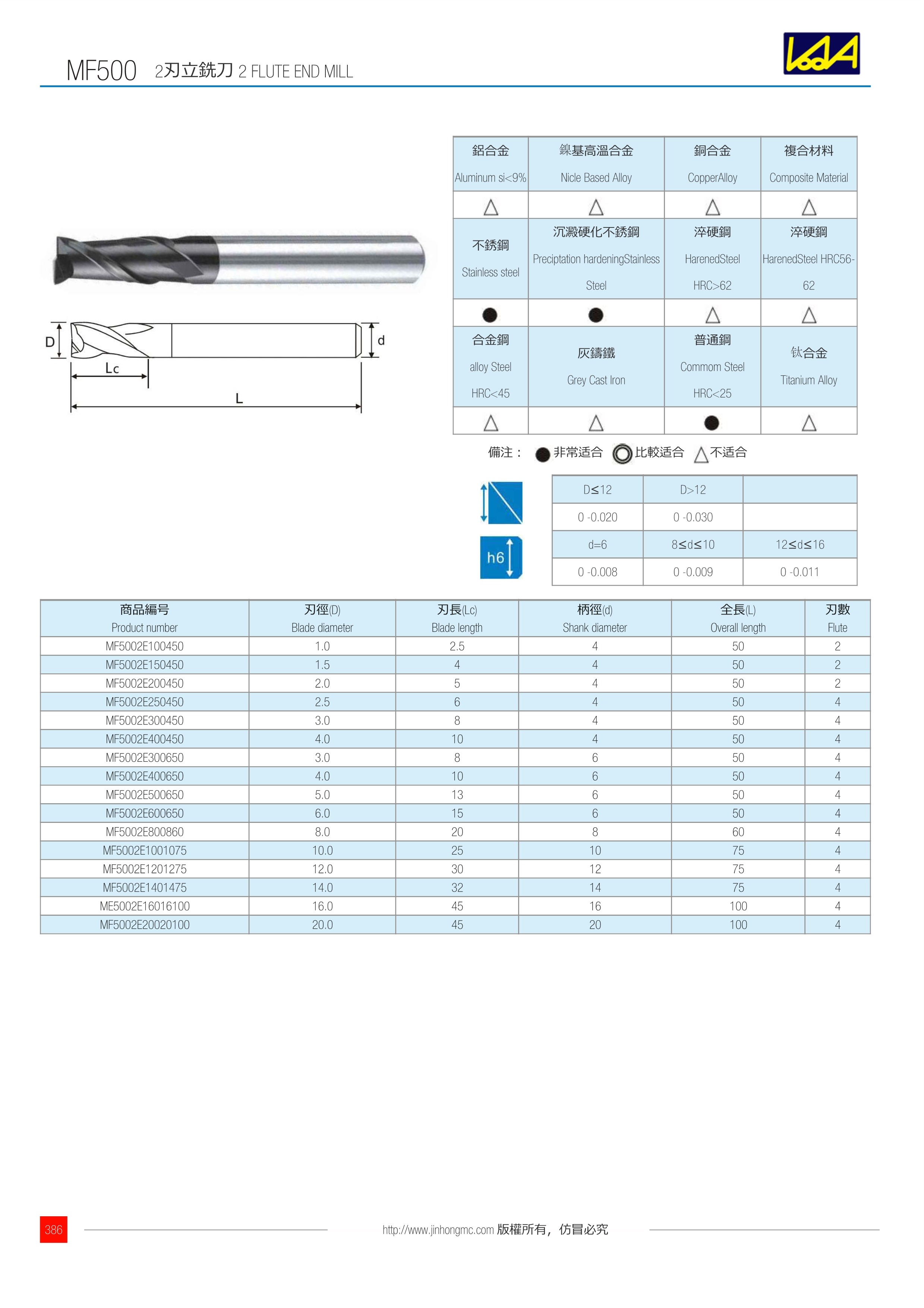

訂購：mf500-1 2刃立銑刀
